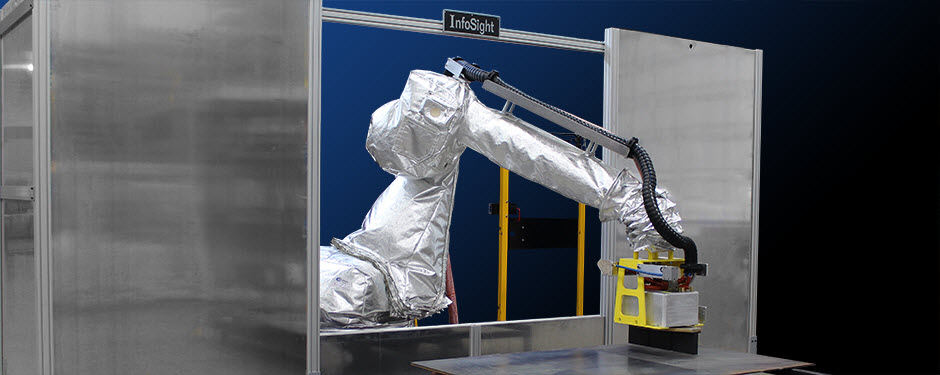

Robotic Stamper



InfoSight designs and builds customized automated marking machines that can be integrated with robots to:

  • Provide faster cycle times with a smaller footprint in the customer’s plant.
  • Operate at temperatures from ambient to approximately 2000oF (1090oC).
  • Utilize InfoSight marking software, PLC control software, and the Robot software to create a marking system that integrates seamlessly into the customer’s process.
  • Marking technologies available include:
    • InfoDent® 8400 Stamping Systems
    • LabeLase® Direct Laser Marking
    • Automated Taggers
    • Spray Marking Systems: I-Dent®, Drop on Demand (DOD), Color Banding, Bar Painting



InfoDent® 8400 Stamping Systems

  • Custom ID8400 Marking Head can include multiple rows of pins.
  • Designed for reliable operation in hot or cold marking applications
  • Permanent, easy to read dot matrix characters using rapid fire, pneumatically-driven, conical tipped impact pins.
  • Marks legibly on scaly surfaces & rough, curved, or uneven surfaces.
  • Suitable for marking metal products including plates, long products, tubes and pipes, and coils in severe environments.



LabeLase® Direct Laser Marking

  • Customized InfoSight LabeLase® Laser Marking Systems print text, logos, and barcodes directly onto Steel Products.
  • Applies a white patch that is marked by the laser.
  • Temperature range: ambient to 500oF (260oC), but may be modified for higher temperature products.
  • Suitable for marking plates and tubes & pipes.



Automatic Taggers

  • InfoSight’s Automatic Tagging Systems are designed to apply tags to stationary products such as slabs, beam blanks, bars, rounds, billets, blooms, plates, and coils.
  • Automatic taggers have two sections:
    • Tag Prep—prints, shears, and presets the tag to the applicator,
    • Tag Applicator—transfers the tag to the product and attaches it via MIG or stud welding or nailing.
  • InfoSight’s high powered industrial CO2 LabeLase® printers blacken the tag’s white surface, which allows reliable non-contact printing of large alphanumeric data, high quality barcodes, and logos.
  • A robot would be integrated as the tag applicator.



Spray Marking Systems

Any InfoSight spray marking technology may be integrated as an End of Arm Tool (EOAT) on a robot.



I-Dent® Marking Systems

  • Utilize a non-contact multi-nozzle printhead, capable of producing a full range of upper case alphanumeric characters 3/4 to 6 inches  (19 to 150 mm) high.
  • Recommended for high temperature (>500oF, 260oC) applications.
  • Recommended for ambient temperature applications.



DOD systems

  • Utilize a non-contact multi-nozzle printhead, capable of producing a full range of upper case alphanumeric characters 3/4 to 6 inches (19 to 150 mm) high.
  • Integrate an economical OEM printhead
  • Recommended for ambient temperatures.



Color Banding and Bar Painting Systems

  • Utilize a non-contact single nozzle, or multiple single nozzles, to create a band around or pattern on the end of a tube or pipe.
  • Multiple EOAT’s can be utilized to create different color bands or patterns.
  • Recommended for ambient temperatures.





Technical specifications are subject to change without notice.
