PIC-ANNEAL®
Metal Tags are Resistant to Pickling,
Annealing, High Temperatures, Weather and Chemicals
 |

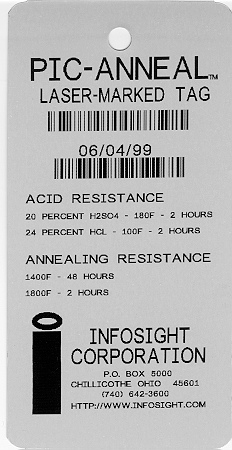

The PIC-ANNEAL® specialty metal tag was developed for use
as a barcode/tracking tag to withstand the rigors of pickling and/or
annealing processes as well as high temperatures, weather and chemicals. Barcode information is imaged on the tag with the InfoTag®
Laser Marker. The marked tag will then survive immersion in a 20%
sulfuric acid solution at 180°F (82°C) for 2 hours or a 24% hydrochloric
acid solution at 100°F (38°C) for 2 hours. The tag will survive annealing
temperatures of 1800°F (822°C) for 2 hours and 1400°F (760°C) for 48 hours.
The tag is coated on both sides of .008" (.203 mm) thick 430
stainless steel. It is standard in coils 3" (76.2 mm) in width by
300' (91.44 m) in length. The tag material is available nicked and
notched in lengths from 1" (25 mm) to 24.0" (609.6 mm) for easy
break-off after laser imaging. Tags may also be hole-punched or slotted
for attachment to the product. |
|
|
