Opticode® Vision Bar Code Reader

Benefits

  • Runout Table Reading From a Distance up to 50 feet
  • Read From Carriers
  • Read From Cranes
  • Track Material From Casting to Stock to Rolling
  • Efficient Inventory Taking Using Industry Standard Readers
 Opticode® Video Display
Opticode® Camera

Additional Features

  • Self-Calibrating
  • EEPROM For Storage of Configuration Data (if required)
  • Reads Industry Standard Bar Codes
    CODE 128
    CODE 39
    INTERLEAVED 2 OF 5
  • Capable of Reading Custom-Designed Bar Codes



Overview

Bar codes offer fast and accurate means of collecting product data during the manufacturing process, effectively implementing Computer Integrated Manufacturing into the workplace. Historically, there was no practical way to accomplish bar code reading at a distance.

Now Opticode® Vision Bar Code Reader, designed by InfoSight, uses a standard CCD Shutter Camera to read bar codes. Long (200mm) lenses can be used to read bar codes beyond the range of laser scanners. The system's video monitor can be used to assist an operator in positioning the camera using an optional pan/tilt/zoom mechanism.



Specifications

Electronics Enclosure

  • Dimensions: 16"W x 20"H x 10"D
  • Cabinet: NEMA 12
  • Utilities: 120VAC, 3A - Regulated & Conditioned

Video Display

  • Panel-Mount LCD Monitor
  • BNC Connector for External Monitor
  • On-Screen Display of
    Bar-Code Data
    Read Statistics ("hits-per-second", etc.)
    Read Status (AUTO mode)

Video Camera (Typical)

  • Up to 4 Cameras (1 typical, more per application)
  • 1/2" CCD Array: 768H x 494V Pixels
  • Electronic Shutter: 1/125 to 1/10,000 sec.
  • Lens: Depends on Application (500mm typically Reads (x=.048) Bar Codes up to 50 ft.)
  • Enclosure: 23"L x 8.6"W x 6.2" H (typical - Long Distance Applications
  • On-Screen Display of
    Bar-Code Data
    Read Statistics ("hits-per-second, etc.)

Serial Communications

  • RS-232C: 2 Ports, Full or Half Duplex
  • Baud Rates: 110 to 38400
  • Parity: NO, ODD or EVEN
  • Data Bits: 7 or 8
  • Stop Bits: 1 or 2
  • Protocol: NO, XON/XOFF or CTS/RTS

Operating Modes (typical)

  • MANUAL: Accepts External Trigger (Serial or I/O)
  • AUTO: Outputs Results Once Per Bar Code (when data changes)

PLC I/O

  • Up to 8 I/O Ports Standard (AC or DC)
  • Expandable

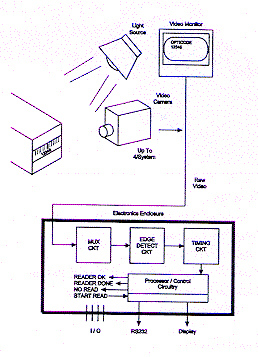

Opticode® Block Diagram
