LabeLase® 1000 Tag Printer

The world’s first fully automatic
continuous-feed desktop laser printer for metal bar code tags!!



The InfoSight LabeLase® 1000 Tag Printer is designed to function like the PC printer you probably already have on your desk, and fits into just as small a space. It plugs directly into the back of your PC, and with the free Producer™ software you will be printing high-quality metal bar code tags in just minutes.



Desktop Laser Printing
System for Metal Bar Code

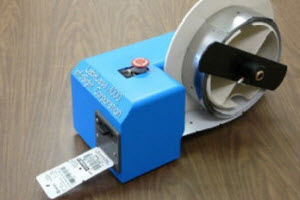

LabeLase® 1000 Tag Printer

The LabeLase® 1000 Tag Printer accepts standard 300-foot (90-meter) rolls of continuous tag stock, pre-nicked & notched for easy breakoff after printing. As an added benefit, it also prints single die-cut tags simply by inserting into the convenient front slot.

The advanced electronics and all-new optics configuration are designed for even higher reliability, ultimate ease of maintenance, and a printing speed that rivals laser printers with 2-1/2 times the power.

The free Producer™ software is powerful yet easy to use, with new layout features emulating popular presentation software packages. The WYSIWYG (What You See Is What You Get) approach makes creating simple or complex tag layouts a breeze.

Features

  • Smallest footprint available anywhere
  • Quiet operation
  • Free PC-based Producer™ software for tag layout and printing
  • Continuous roll and single tag feeding are standard
  • Unattended batch or single-on-demand tag printing
  • Non-contact marking (no delicate pin matrix head)
  • High quality bar codes meet AIM, Mil, and GSI specs. Common symbologies pre-programmed, additional and custom symbologies available.
  • Prints all PC-installed fonts, including multi-byte characters for Asian languages
  • Unlimited range of metal tags suitable for any environment

InfoSight Corporation is well known for inventing the high temperature laser-markable InfoTag® in 1994, and creating the first fully automatic laser tag printer, the KE2700. InfoSight revolutionized tag printing in 1998 with the small-footprint KE2800-series markers for standalone use or incorporation into automatic attachment systems. Now, the all-new LabeLase® 1000 printer is set to redefine the industry once again.

LabeLase® 1000 plugs directly into your PC
LabeLase® Producer™ software

Specifications
Physical dimensions 22" x 9" x 8" (560 x 230 x 205mm)
Weight Less than 40 lbs. (18 kg) without tag stock
Power requirements 100-240 VAC, 50/60 Hz, 2.4 A
Marking method Class 1 device with embedded Class 4
Pulsed CO2 laser beam, class 1 laser safety rating
Laser life 15,000 operating hours typical (approx. 5 million tag-inches)
Marking speed Varies by tag-type & data layout. Typ: 5-10 sec/tag-inch.
Bar code symbologies Code 128, code 39, Interleaved 2 of 5, 2D (data matrix), UPC, Opticode®/Numbra®. Additional standard symbologies can be added, and custom/proprietary symbologies developed upon request.
Bar codes per tag Unlimited
Maximum bar code length 24 inches (610mm)
Tag layout software LabeLase® Producer™ provided at no charge for Windows 2000, XP, Vista
Tag Widths 3 inches (76mm nominal)
Tag Lengths .375 to 24 inches (9.5 to 610mm)
Communications Interface RS232C serial, InfoSight Extended Protocol, USB & Ethernet

INVISIBLE LASER RADIATION AVOID EYE OR SKIN EXPOSURE TO DIRECT OR SCATTERED RADIATION CLASS 1 LASER PRODUCT, USING A CLASS 4 EMBEDDED LASER (10 W, 10.57 - 10.63 µm)

 Technical specifications are subject to change without notice
