ID8400 HEAVY DUTY
InfoDent® Marking System

Advanced Marking Solutions for Industrial Identification Worldwide

Features

  • Automatic programmable dot matrix marking system for hot or cold applications.
  • Permanent, indented marks for long term product traceability.
  • Rugged and reliable for severe mill environments.
  • Highly legible, alphanumeric characters for manual or machine reading.
  • Legible marking on rough, uneven surfaces.
  • User selectable character sizes and fonts.
  • High speed printing.
  • Multiple message line printing.
  • Print messages can be entered manually or downloaded from a host computer system.



The ID8400 model InfoDent® marking system is a programmable heavy duty system that was designed specifically for hot marking applications in the steel industry where reliable operation under severe conditions is an absolute requirement.

The inherent ruggedness and reliability of the ID8400 InfoDent® Marking System, together with its high operating speed and print capacity, make it the ideal choice for any heavy duty marking application, hot or cold.

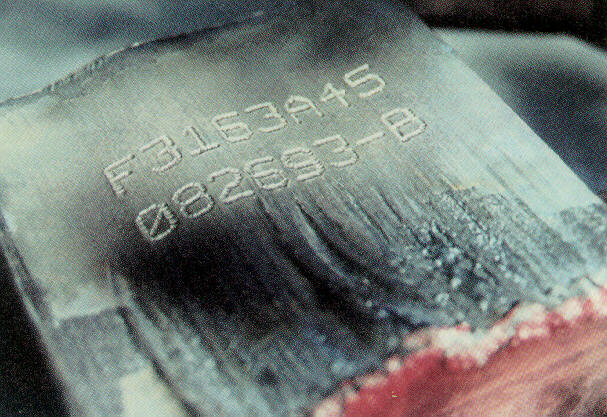

Typical applications for the InfoDent® marking system include permanent identification marking on castings, billets, blooms, slabs, plate and pipe.





Prints on Irregular Surfaces

The InfoDent® marker prints permanent, easy to read dot matrix characters in hot or cold metal using rapid fire, pneumatically-driven, conical tipped impact pins. This technology allows it to mark legibly on scaly surfaces as well as on rough, curved or uneven surfaces that would preclude the use of conventional die stamping techniques.



High Speed Printing

The InfoDent® marker can print several lines of information in a very short cycle time. For example: When configured with two rows of 4 marking pins on each row and set to print 5x7 pixel characters at 12mm (.48") high, the ID8400 can print 2 lines of 8 characters per line in 4 seconds.

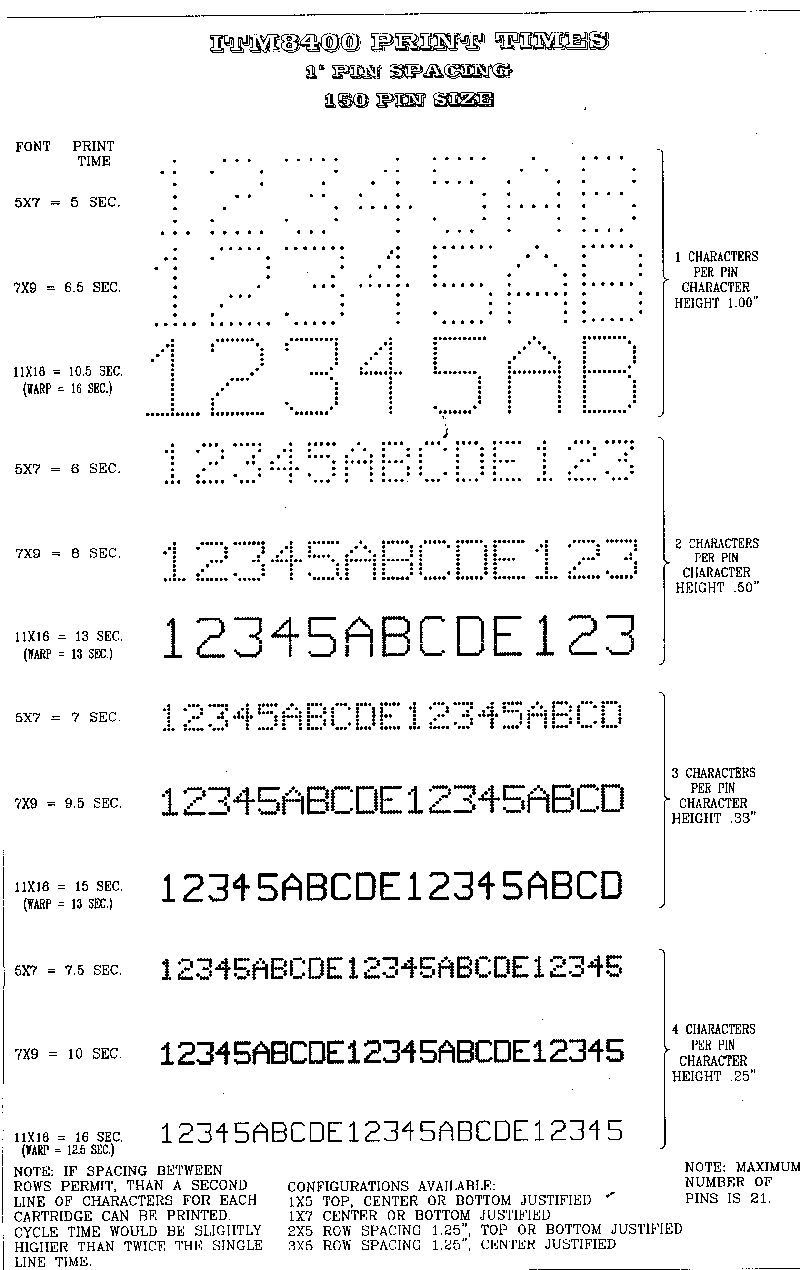

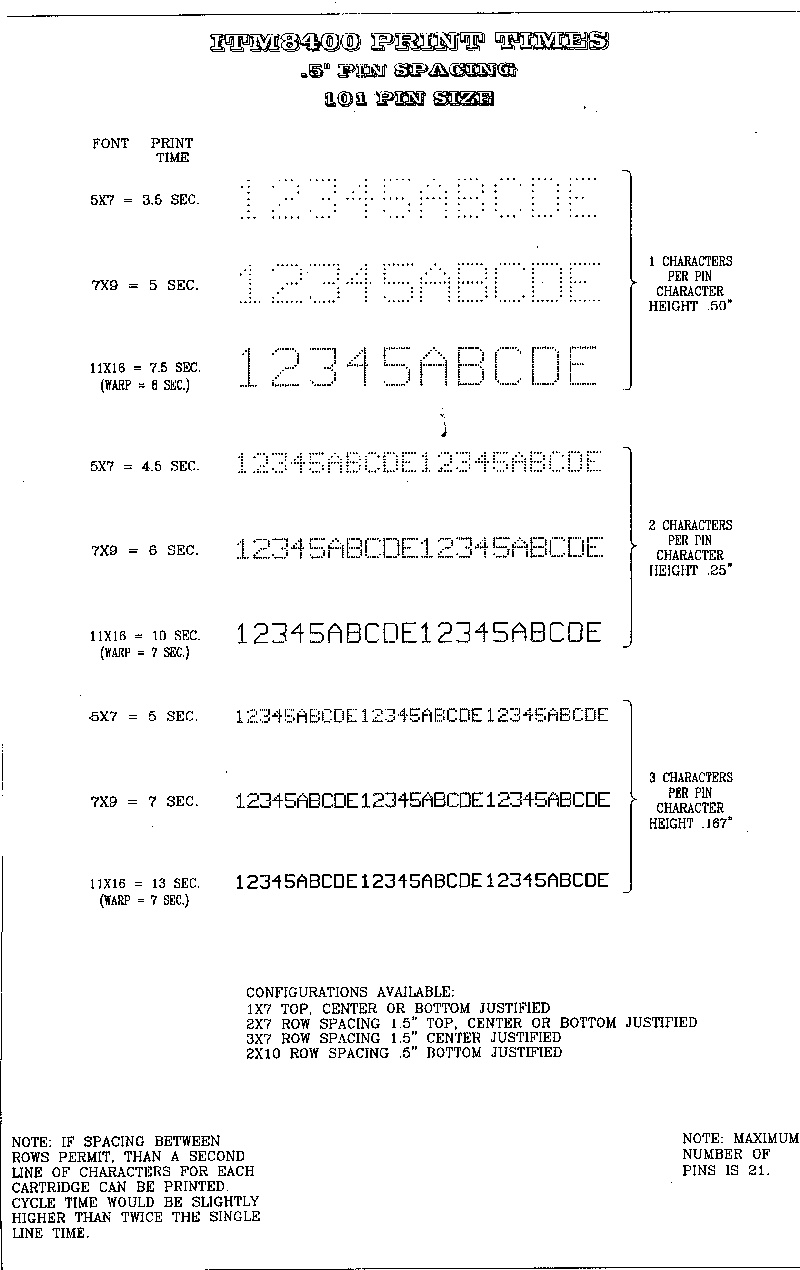

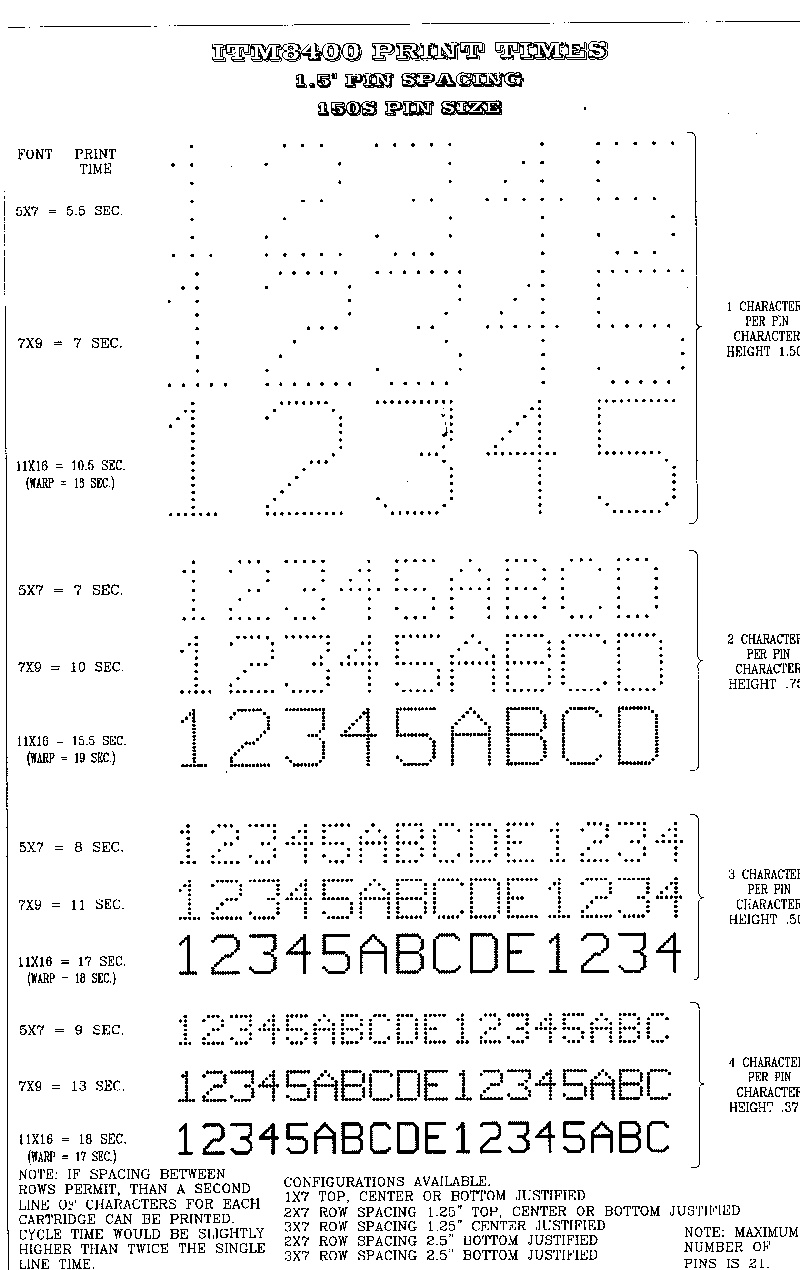

Print speed tables: 101 pins, 0.5" spacing    150S pins, 1.5" spacing    150 pins, 1" spacing



User Selectable Character Sizes

A set-up menu allows the user to select the size of the characters that will be printed as well as pixel density that will be used to form the characters. Character sizes can range from 1/4" (6mm) to 1-1/2" (39mm) in height. Pixel density (font) selections are 5x7, 7x9, and 11x16. Continuous characters are available at slightly reduced print speeds.



Multiple Message Lines

The InfoDent® marker has the capacity to print single or multiple character strings. Up to 4 lines can be printed at a time. The number of characters that can be printed on each line depends on the character size selected.

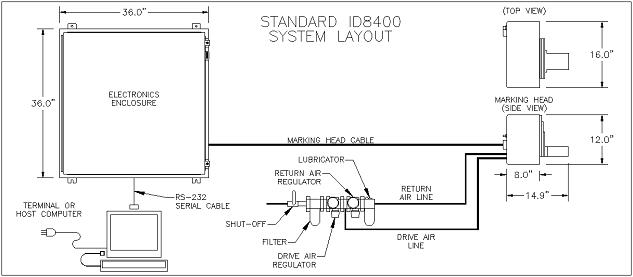

Standard ID8400 InfoDent Marking System equipment includes:

Marking Head

A completely enclosed, rugged unit that houses the matrix positioning mechanism, pin drive solenoids and marking pin cartridge assembly. This modular design allows for quick removal of the head for maintenance -- 10 minutes or less.



Electronics Enclosure

The control system for the ID8400 head consists of a NEMA 12 wall mounted enclosure measuring 91.44cm x 91.44cm x 30.48m (36" x 36" x 12".)



Operator Terminal

A desk top CRT display with keyboard that is used for entering system set-up parameters and for entering and/or editing print messages.



Air System

Includes the air filter, drive and return air regulators and valving for the marking head.



Interconnection Cables

Marking Head Control Cable and Operator Terminal Cable are provided in standard 50 ft. lengths. Other lengths are optional.



Utility Requirements

  • Electrical: ..... 120VAC, 5 amps or 220VAC, 2.5 amps. 50-60 Hz, 1 PH, conditioned
  • Air: .............. 90-120 psig (4.8 - 8.3 bars), clean and dry 10 cfm max.



InfoSight Custom Engineering and Manufacturing Capability

As a leading manufacturer of custom marking systems world-wide, InfoSight Corporation has the engineering knowledge and manufacturing expertise needed to apply the ID8400 InfoDent® Marking System to meet your custom marking requirements.  For further information, please contact your local InfoSight sales representative or InfoSight's Sales Department.
