Jib Marker Solutions for Moving Pipe
The InfoSight I-DENT® Jib Marker for Moving Pipe is the ultimate solution when it comes to non-contact stencil marking on moving pipe.

The I-DENT® marking head is capable of producing a full range of upper case alphanumeric characters 3/4” to 6” (19mm to 152mm) high. Systems can be configured to produce OCR (Optical Character Recognition) characters and InfoSight NUMBRA® barcodes allowing the pipe to be machine readable.

A wide variety of inks are available to meet most marking applications. Specific inks have been developed to handle normal, oily and high temperature pipe.

The ink system control panel contains valves for different mode selections and is used for normal operation, cleanup and maintenance operations.

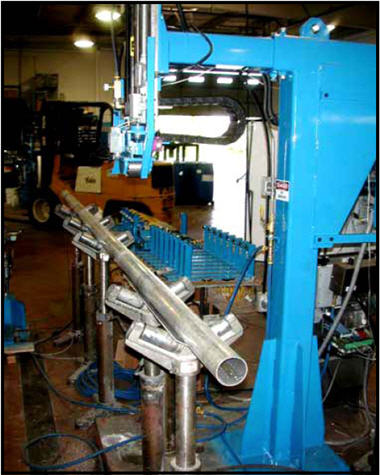

 I-DENT® Jib Marker during testing in InfoSight shop
I-DENT® Jib Marker Shown during testing in InfoSight shop

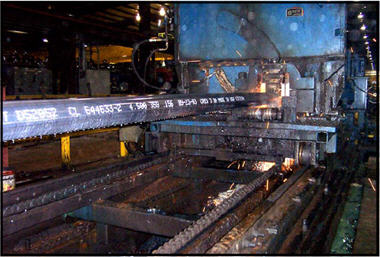

Drop-on-demand marker in production
Drop-on-demand marker in production, marking on a moving pipe

I-DENT® Features

Non-Contact Printing with highly visible Pigmented Inks
7,9, and 16 Nozzle Arrays
Line Speeds up to 400 FPM (2 MPS)
NEMA Rated Enclosures
Local Terminal or Host Computer interface
Available marking technologies
       I-DENT® air-nubulized marking
       Drop-on-demand marking
       Continuous Ink Jet marking
Message Repeat is configurable
I-DENT® Jib Marker typical side view
Typical Side View of I-DENT® Pipe Marking Jib

System Options

Hot or Cold Pipe Marking Systems Up to 1800°F (1000°C)
 Custom Designed Product Handling Equipment
 Custom Data Functions
 Air Conditioned Electronics Enclosure
 Multiple Message Buffers
 Off-line Automatic Cleanup Station for printhead nozzles
 Manual Pushbutton Controls local or pulpit based controls
 Encoder Speed Sensor that allows for product that slows down and speeds up or even comes to a complete stop.
 Raise Lower mechanism that allows marking on large or small diameter pipe without having to readjust the marking head or jib.
 Extend Retract jibs to allow easy offline maintenance of the marking head
 Heavy duty construction, built and designed for harsh environments
The I-DENT® marking head allows the user to easily adjust character height via the angle of the marking head in relationship to the product. I-DENT® marking head illustration
Illustration Shows angle of I-DENT® in relationship to character height.

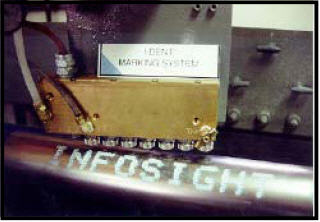

Quick dry time solvent based inks are used for marking ambient temperature pipes. Water based inks are used on hot pipe using the temperature of the pipe to quickly dry the message. I-DENT® marking head on pipe
