| AUTOMATED MARKING SOLUTION FOR HOT OR COLD PRODUCTS

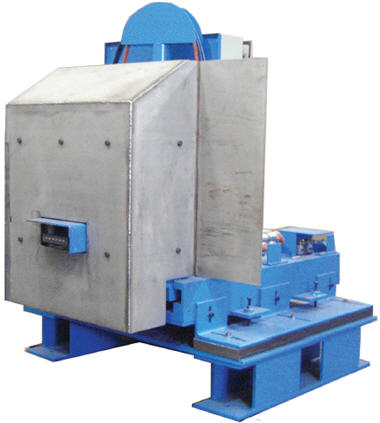

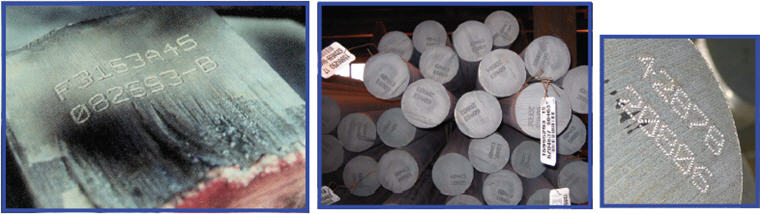

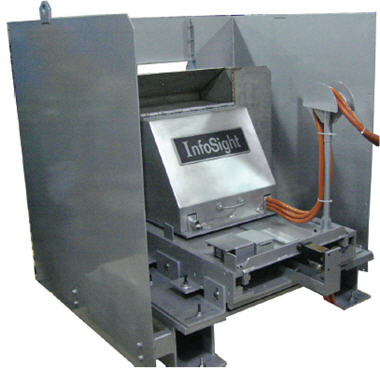

The Single Bar Stamping System is an industrial marking system that features our INFODENT® ID8400 and is designed to quickly and permanently stamp variable message data onto the ends of HOT or Cold steel blooms, billet, and beam blanks.
Mounting the ID8400 Marking Head to a linear positioning mechanism the marking head is ready to move into position and mark the product once a print permissive signal is issued from customer controls.
|
 |
| Whether marking hot or cold products the inherent ruggedness and reliability of the INFODENT® ID8400 and the integration capabilities of InfoSight make this system an ideal choice for any heavy duty marking application.
|
 |
 |
|
 |
|
|
|
|
|
| Main Electrical Supply |
120 VAC, 15 amps, 60Hz, 1 PH, Conditioned |
| Control Voltage (discrete I/O) |
24VDC |
| Air Requirements |
75 psig min. for machine movement, 105psi min. for marking head |
| Communications |
Customer Data via Ethernet or Serial (RS-232), other options available |
|
|
|
|
| * Impact Pins |
Many sizes, cone angles, and materials available |
| * Sharpener for Impact Pins |
Motorized (120VAC) with chuck to hold Impact Pin |
| * Vertical Air Amplifier with Pump |
30 Gal. capacity, 200 psi max. (includes regulator & filter) |
| * Cooler for Marking Head |
Pneumatic, 35SCFM, 2500BTUH |
| * Pin Cartridge Configurations |
Broad range of standard and custom pin cartridge configurations available. |
|
* For reference only, components are application specific and will be sized accordingly. Please contact factory for details.
|
